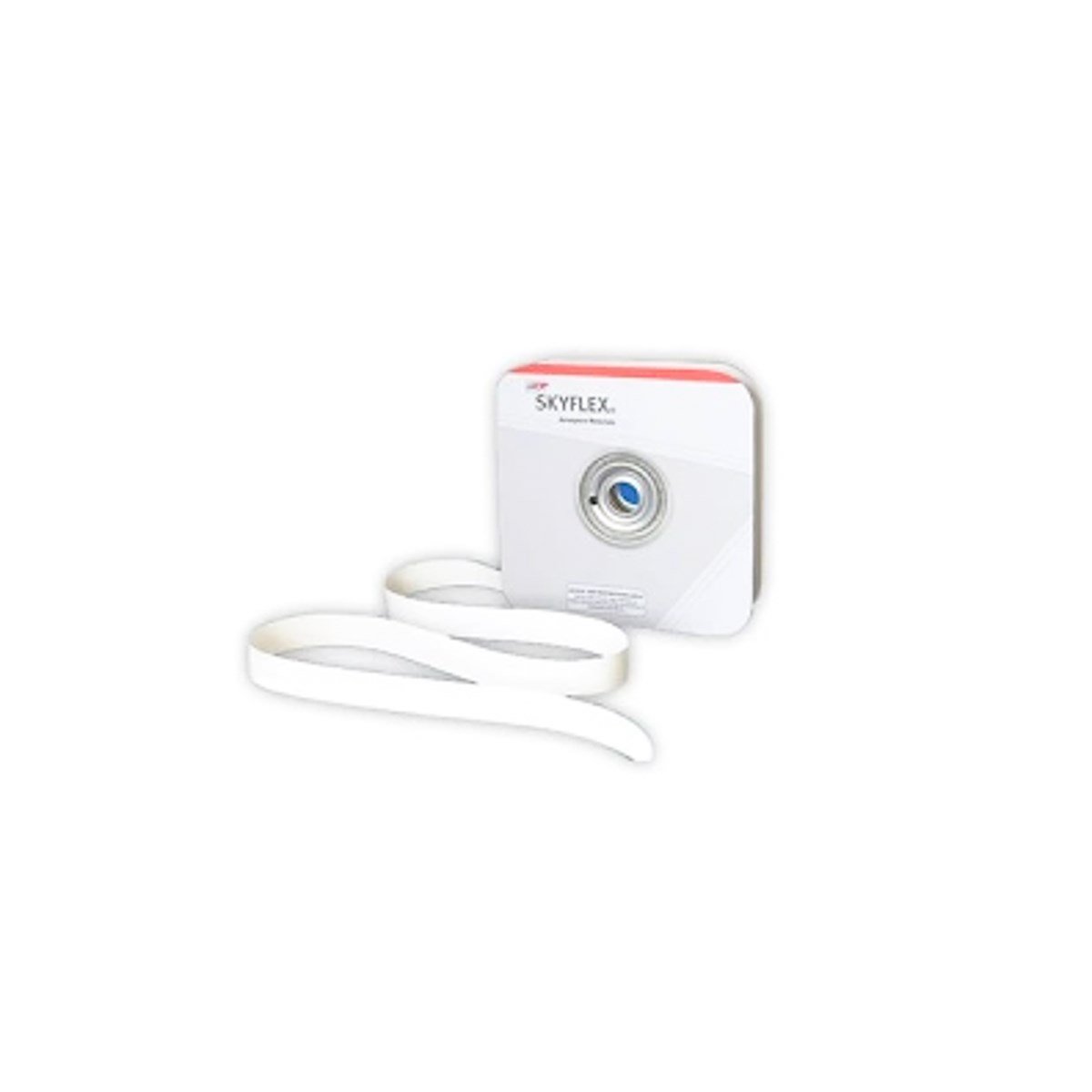

GORE GSC21-95035-010 (1.4-Inch-Roll)

GORE™ SKYFLEX™ Aerospace Materials

Overview

GORE™ SKYFLEX™ Aerospace Materials are a portfolio of engineered expanded polytetrafluoroethylene (ePTFE) tapes and gaskets developed to provide reliable sealing, abrasion protection, corrosion prevention and gap filling for aerospace faying surfaces. Proven in service for more than 20 years, these lightweight, non-curing materials are specified by leading civil and military aircraft OEMs and provide a reusable alternative to traditional form-in-place (FIP) sealants. Designed for demanding aerospace environments, SKYFLEX™ materials maintain performance after repeated opening and closing cycles while resisting fuels, hydraulic fluids, vibration, UV exposure and harsh operating conditions.

Key Technical Specs

• Product Type: Engineered ePTFE aerospace tapes and gaskets
• Material: Expanded polytetrafluoroethylene (ePTFE)
• Available Series: 100, 110, 200, 500, 520, 700, 720, 730 and 1600
• Functions: Sealing, abrasion protection, corrosion protection, anti-chafe and gap filling
• Operating Temperature (without adhesive): Up to -73°C to +260°C depending on material series
• Operating Temperature (with adhesive): Up to -65°C to +177°C depending on material series
• Typical Tape Thickness: 0.3-3.5 mm depending on series
• Typical Gasket Thickness: 0.3-9.9 mm depending on series
• Storage Life: 10 years (without adhesive), 2 years (with adhesive)
• Construction: Lightweight, flexible, non-curing and reusable

Approvals & Specifications

• AMS 3255 qualified material series (various Class/Type ratings depending on product)
• Flammability compliant with ABD0031 and FAR 25.853(a)
• Tested for long-term resistance to aviation fuels, hydraulic fluids, turbine oils and de-icing fluids (selected series)
• Specified by leading commercial and military aircraft OEMs worldwide

Typical Applications

• Aircraft access panels
• Leading edge D-noses
• Engine cowlings
• Fairings
• Fuel panels and external fuel tanks
• Fuel bladder cavities
• Helicopter tail booms
• Cargo and passenger floorboards
• Pitot tube sealing
• Antenna gasket and fastener sealing

Compatibility & Safety Notes

• Compatible with aviation fuels, petroleum products and hydraulic fluids depending on material series
• 730 Series offers excellent resistance to SKYDROL®, engine oils, turbine oils and de-icing fluids
• 520 and 720 Series are designed for jet fuel sealing applications
• Non-hazardous and non-curing materials simplify handling and disposal
• Avoid burning, grinding, high-temperature cutting or melting without suitable local exhaust ventilation and personal protective equipment
• No special waste handling requirements under normal use

Packaging & Procurement

• Available as aerospace tapes and precision-cut gaskets
• Standard and custom dimensions available
• Wide range of adhesive options
• Supplied through authorised GORE™ SKYFLEX™ distributors worldwide

Why This Product is Chosen for AOG / MRO

• Eliminates curing time compared with traditional form-in-place sealants
• Reusable sealing materials withstand multiple access panel removal cycles
• Excellent protection against abrasion, corrosion and environmental contamination
• Highly conformable material compensates for manufacturing tolerances and uneven gaps
• Reduces maintenance labour, aircraft downtime and life-cycle costs
• Lightweight construction supports aircraft weight reduction initiatives

Practical Suggestions for Your Team (AOG Mindset)

• Select the appropriate SKYFLEX™ series according to fluid exposure, gap size and compression requirements
• Use 520 or 720 Series where long-term jet fuel sealing performance is required
• Choose 730 Series for applications exposed to SKYDROL®, turbine oils or aggressive aviation fluids
• Use reusable tape systems on frequently opened access panels to reduce maintenance time
• Specify custom gasket dimensions where production tolerances require tailored sealing solutions
• Store adhesive-backed materials within the recommended shelf life to maintain installation performance

Manufacturer / Aviation Spec Codes

• Manufacturer: W. L. Gore & Associates
• Product Name: GORE™ SKYFLEX™ Aerospace Materials
• Product Type: Engineered ePTFE aerospace tapes and gaskets
• Available Series: 100, 110, 200, 500, 520, 700, 720, 730 and 1600
• Primary Applications: Faying surface sealing, corrosion protection, abrasion protection and gap filling
• Key Standards: AMS 3255, FAR 25.853(a), ABD0031
