D9100-1 (1-Inch-Roll)

D9100 FR Waterseal Tape & Corrosion Inhibitor

Overview

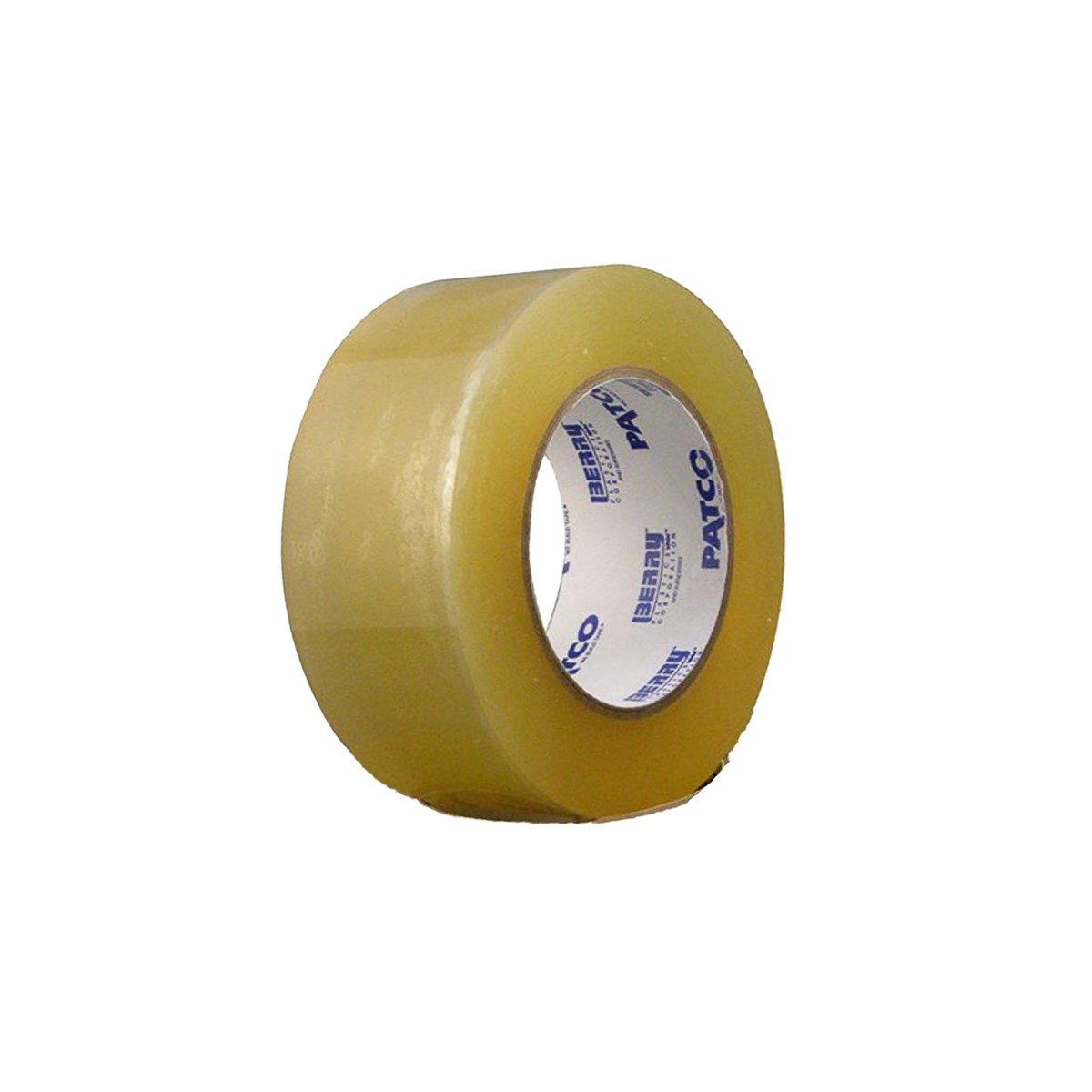

D9100 FR Waterseal Tape & Corrosion Inhibitor is a transparent, interior-grade aromatic polyurethane protective tape designed for aircraft floor joint sealing, moisture protection and corrosion inhibition. Manufactured with a durable polyurethane film backing and aggressive urethane-based adhesive, the tape conforms easily to curved and irregular surfaces while providing excellent abrasion resistance, puncture resistance and long-term protection. It is commonly used in aircraft entryways, galleys, lavatories and other high-wear wet areas where water ingress and corrosion protection are critical.

Key Technical Specs

• Product Type: Flame-retardant polyurethane sealing and protection tape
• Backing: Interior-grade aromatic polyurethane film
• Adhesive: Urethane-based permanent adhesive
• Liner: 94 lb coated kraft paper
• Colour: Transparent
• Total Thickness: 9.0 mil (0.229 mm)
• Backing Thickness: 7.0 mil (0.178 mm)
• Adhesion to Steel (ASTM D3330): 40 oz/in (4.38 N/cm)
• Tensile Strength (ASTM D3759): 70 lb/in (122.6 N/cm)
• Elongation (ASTM D1000): 600%
• Operating Temperature: -54°C to +148°C (-65°F to +300°F)
• Application Temperature: 10°C to 49°C (50°F to 120°F)
• Standard Shelf Life: 24 months

Approvals & Specifications

• FAR 25.853(a)
• Boeing BMS 8-346 Type I Class 1 & 3
• Boeing BMS 8-346 Type II Class 3
• Airbus AIMS 10-05-004
• ABS 5093
• ABD 0031 Paragraphs 7.3.2 & 7.4
• Fokker FK05-193
• NSN: 8030-01-542-1415

Typical Applications

• Aircraft floor joint sealing
• Moisture barrier protection
• Corrosion prevention on aircraft decking
• Entryways, galleys and lavatories
• High-wear surface protection
• Sound damping applications
• Aircraft interior MRO and refurbishment

Compatibility & Safety Notes

• Can be applied directly over wet sealant
• Conforms easily to curves and irregular surfaces
• Transparent construction allows visual inspection of the sealed area
• Store between 16°C and 27°C (60°F-80°F) at 40-60% relative humidity
• Apply only within the recommended application temperature range
• Ensure the substrate is clean and properly prepared for maximum adhesive performance

Packaging & Procurement

• Available in widths from 1/4" to 48"
• Standard Roll Length: 108 ft
• Transparent finish
• Supplied with coated kraft release liner for clean application

Why This Product is Chosen for AOG / MRO

• Provides long-term moisture sealing and corrosion protection in high-traffic aircraft interiors
• Excellent abrasion resistance extends floor protection life
• Can be installed directly over wet sealants, reducing repair time
• Transparent film allows ongoing inspection without tape removal
• High flexibility enables installation around complex aircraft floor geometries
• Approved to multiple Boeing, Airbus and Fokker aircraft specifications

Practical Suggestions for Your Team (AOG Mindset)

• Keep commonly used roll widths available for rapid floor repairs during AOG events
• Apply firm pressure during installation to maximise adhesive contact and sealing performance
• Take advantage of the transparent backing to inspect sealed joints without removing the tape
• Use the tape over wet sealant where approved to reduce aircraft downtime
• Store rolls within the recommended temperature and humidity limits to preserve adhesive performance and shelf life

Manufacturer / Aviation Spec Codes

• Manufacturer: Berry Plastics Corporation
• Product Name: D9100 FR Waterseal Tape & Corrosion Inhibitor
• Product Type: Flame-retardant polyurethane sealing and corrosion protection tape
• NSN: 8030-01-542-1415
• Primary Specifications: FAR 25.853(a), Boeing BMS 8-346, Airbus AIMS 10-05-004, ABS 5093, ABD 0031, Fokker FK05-193
• Primary Application: Aircraft floor joint sealing, moisture barrier and corrosion protection
