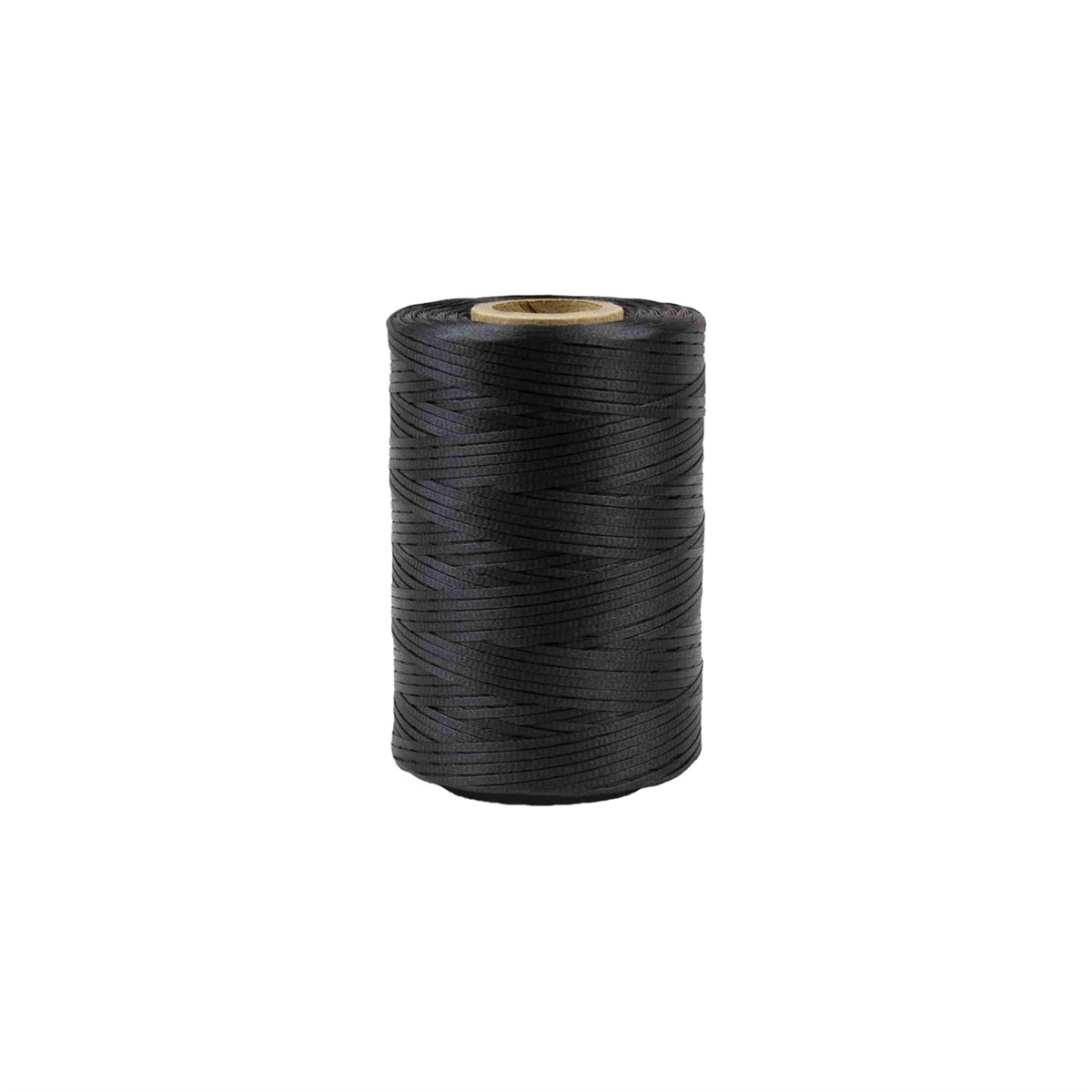

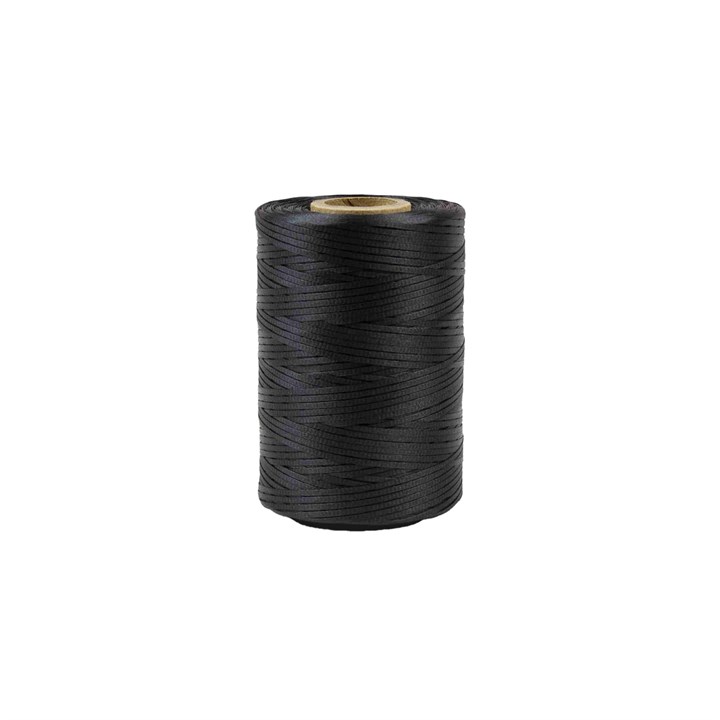

Breyden Products AA52080-B-3/BLK (1-Spl)

CID-A-A-52080 Braided Lacing Tape

Overview

CID-A-A-52080 Braided Lacing Tape is a high-performance braided cable lacing tape used for bundling, securing, and protecting wire harnesses in aerospace, military, avionics, defense, and industrial electrical systems. Available in both nylon (Type I) and polyester (Type II), the tape provides a lightweight, reliable alternative to cable ties while offering excellent knot retention, abrasion resistance, and long-term durability in demanding operating environments.

Key Technical Specs

• Product Type: Braided cable lacing tape
• Specification: CID-A-A-52080
• Available Types:
  • Type I - Braided Nylon
  • Type II - Braided Polyester
• Available Sizes: 1, 2, 3, 4, 5 and additional special styles
• Breaking Strength: 4-135 lbs (depending on size and type)
• Operating Temperature:
  • Type I (Nylon): -55°C to +121°C
  • Type II (Polyester): -73°C to +177°C
• Melting Point:
  • Type I: +248°C
  • Type II: +250°C
• Standard Spool Lengths: 250 yd and 500 yd

Approvals & Specifications

• Conforms to CID-A-A-52080 specification
• Designed for aerospace and military wire harness applications
• Suitable for OEM manufacturing and MRO maintenance operations
• Available in numerous military-recognized sizes and finish options

Typical Applications

• Aircraft wire harness lacing
• Avionics cable bundle installation
• Military electrical systems
• Satellite and aerospace electronic assemblies
• Control panel cable management
• Harness repair during aircraft maintenance
• General industrial electrical cable bundling

Compatibility & Safety Notes

• Provides secure cable bundling without damaging insulation
• Excellent knot retention for long-term service reliability
• Resistant to abrasion during installation and operation
• Select finish according to environmental exposure requirements
• Polyamide finish offers improved resistance to oils and hydraulic fluids including Skydrol, methanol and Freon
• Available in Natural (Off White) and Black, with additional colours available upon request

Packaging & Procurement

• Supplied on 250-yard and 500-yard spools
• Available in multiple tape widths and thicknesses
• Numerous finish options available to meet application requirements
• Ordering codes specify size, finish, colour and optional pre-shrunk configuration

Why This Product is Chosen for AOG / MRO

• Lighter than plastic cable ties for aircraft wiring applications
• Professional OEM appearance for wire harnesses
• Excellent flexibility around complex cable bundles
• High resistance to vibration and movement
• Does not create sharp edges that can damage adjacent wiring
• Available in multiple material systems to match environmental requirements
• Long service life in demanding aerospace environments

Practical Suggestions for Your Team (AOG Mindset)

• Choose Type II polyester when higher operating temperatures are expected
• Use polyamide-finished tape where hydraulic fluids, oils or aviation chemicals may be present
• Select tape size based on bundle diameter and required tensile strength
• Maintain consistent lacing spacing to ensure uniform cable support
• Inspect knots after installation to verify proper tension and retention
• Keep multiple sizes available in AOG repair kits for rapid field maintenance

Manufacturer / Aviation Spec Codes

• Product Name: Braided Lacing Tape
• Specification: CID-A-A-52080
• Type I: Braided Nylon Lacing Tape
• Type II: Braided Polyester Lacing Tape
• Primary Application: Aircraft wire harness lacing and cable bundling
• Available Finishes:
  • A - Untreated
  • B - Wax impregnated
  • C - Synthetic rubber
  • E - Vinyl
  • G - Polyamide (chemical resistant)
• Colours: Natural (Off White), Black, with additional colours available
