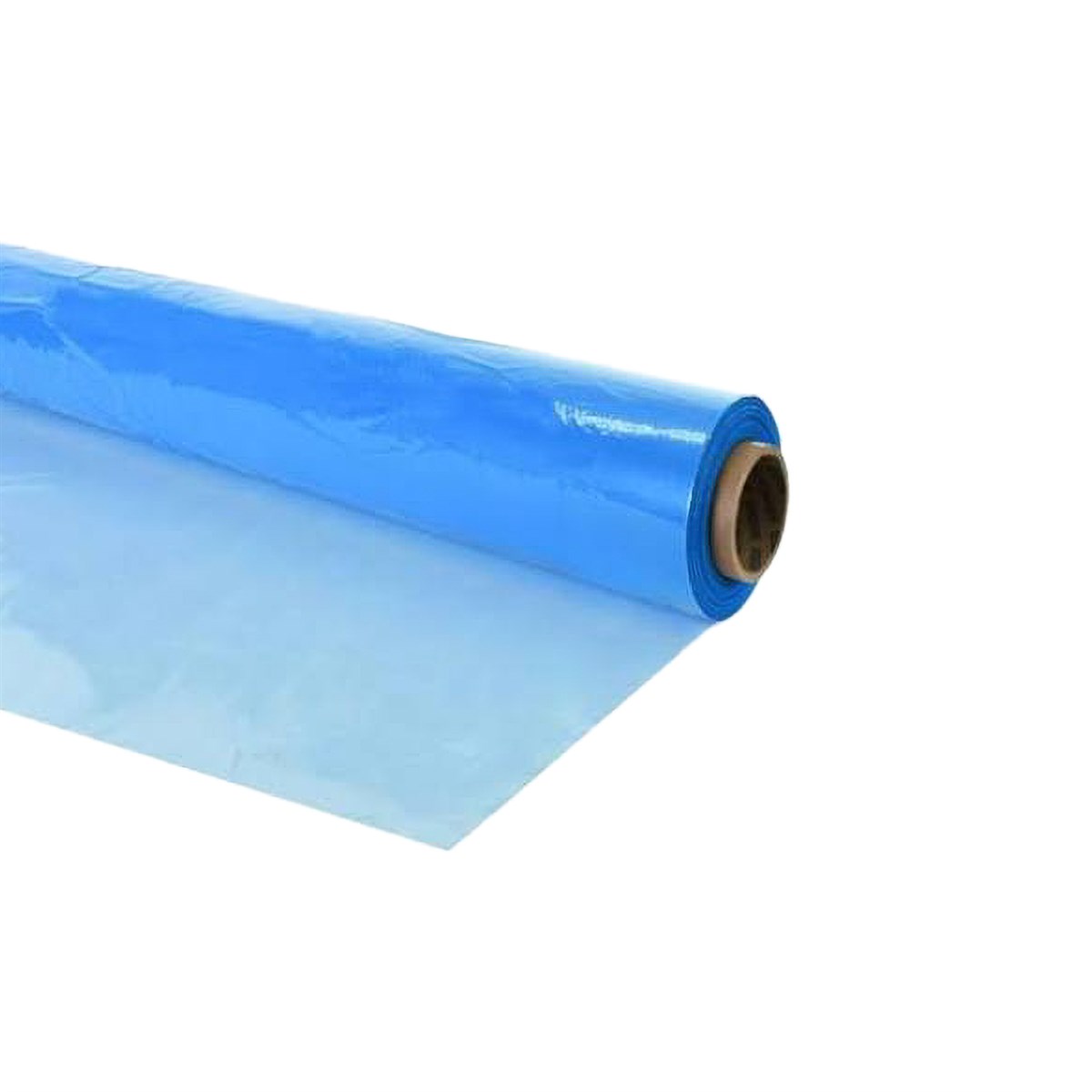

Airtech WL5200B (60-Inch-Roll)

Additional Product Information

Overview

The WL 5200 is a high-performance fluoropolymer release film designed for advanced composite manufacturing in aviation and MRO applications. It ensures reliable release from most resin systems and produces a glossy finish on laminates. Teams rely on WL 5200 for its ability to conform to complex shapes, high thermal resistance, and consistent quality across large-scale production runs.

Key Technical Specs for WL 5200

• Type: High-performance fluoropolymer release film
• Nominal Thickness: 0.015 mm, 0.020 mm, 0.025 mm (0.0006 0.001 in)
• Nominal Width: 1.22 m, 1.52 m (48 60 in)
• Nominal Length: 183 500 m (600 1,640 ft)
• Color: Transparent/Translucent
• Tensile Strength: High (material specific)
• Elongation at Break: Excellent, ensures conformance to complex curvatures
• Maximum Use Temperature: Up to 260 C (500 F), process dependent
• Materials to Avoid: Certain reactive chemicals; testing recommended
• Perforations: Optional, available on special order
• Typical Uses: Composite curing, prepreg layups, resin infusion processes
• Shelf Life: Store in a cool, dry environment; consult Tygavac for specific guidance

Approvals & Specifications

• OEM and military specifications vary; confirm with Tygavac prior to use
• Process and resin-specific approvals recommended

Typical Aircraft MRO / AOG Applications

• Aerospace composite part layups and laminates
• Resin infusion and prepreg curing
• High-temperature composite repair processes
• Gloss finish laminates for interior and exterior aircraft components

Compatibility & Safety Notes

• Compatible with most resin systems; pretesting recommended for new materials
• Handle with PPE as per standard MRO protocols
• Avoid prolonged exposure to chemicals not listed by Tygavac

Packaging & Procurement

• Available in nominal widths of 1.22 m and 1.52 m
• Available in lengths of 183 m and 500 m
• Custom sizes and perforations available on request
• Stored in a dry, temperature-controlled environment for optimal performance
• Easy to handle and cut to required dimensions on-site

Why WL 5200 is Chosen for AOG / MRO

• High thermal resistance for quick, reliable cures
• Exceptional flexibility for complex part geometries
• Consistent glossy surface finish improves final product quality
• Reduces downtime by minimizing release failures

Practical Suggestions for Your Team (AOG Mindset)

• Maintain stock of commonly used widths and lengths for immediate deployment
• Train technicians on handling and cutting techniques to avoid creases
• Perform pre-use testing for new resin systems
• Store rolls in controlled environments to prevent degradation

Manufacture / Aviation Spec Codes

• Manufacturer: Tygavac
• Product ID: WL 5200
• MIL/OEM Codes: Contact Tygavac for specific approvals and certifications

Alternative Names & Descriptions

• Fluoropolymer Release Film WL 5200
• Composite Release Film WL5200
• High-Temp Release Film WL-5200
• Gloss Finish Release Film
• WL 5200 Perforated/Non-Perforated Options
