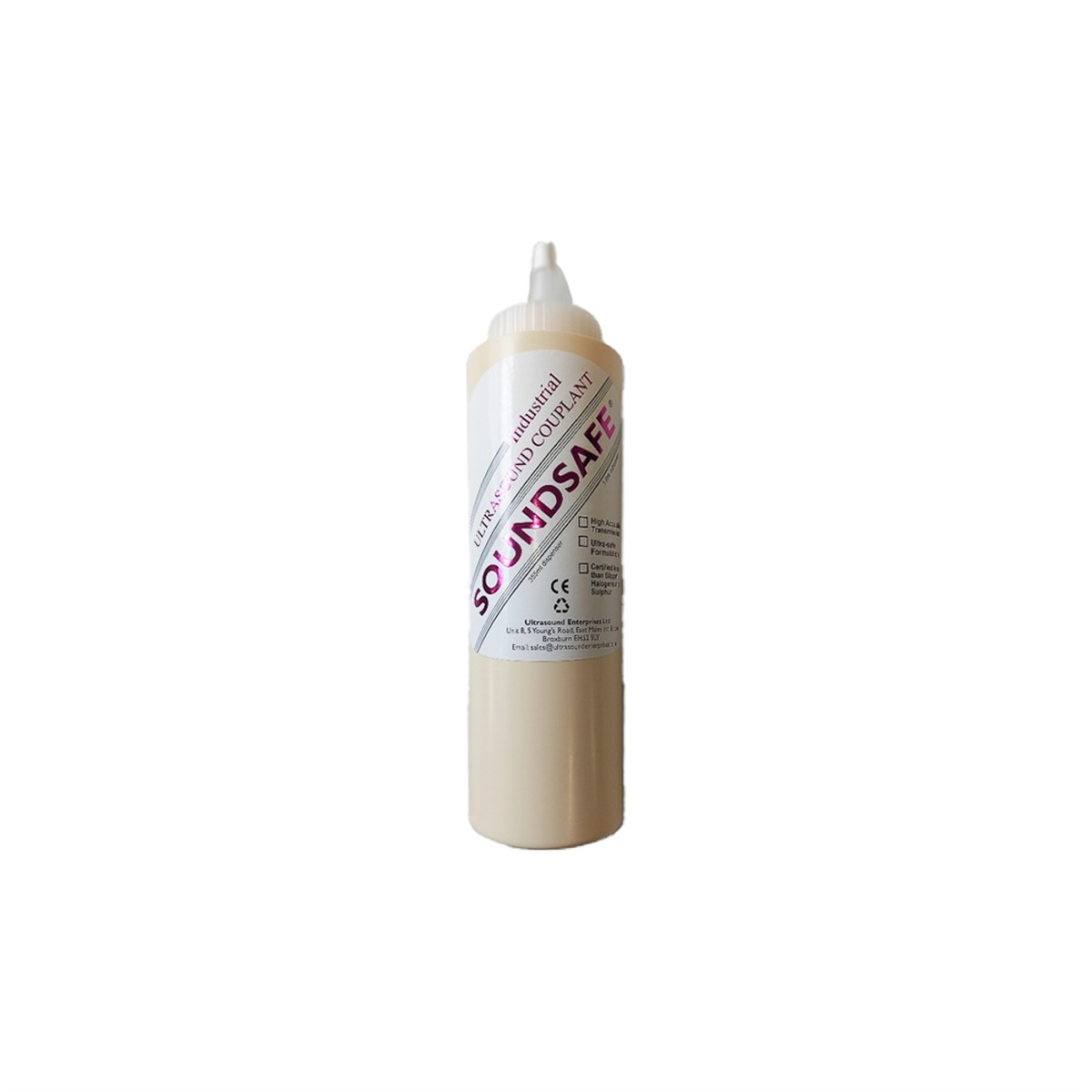

SOUNDSAFE (355-ml-Ctnr)

Additional Product Information

Overview

Soundsafe Ultrasonic Couplant is a high-performance environmentally benign ultrasonic coupling gel developed for nondestructive testing (NDT) and inspection workflows, including aviation maintenance, repair, and overhaul (MRO) operations. It is widely trusted by inspection teams because of its superior acoustic transmission efficiency, stable gel adhesion on vertical and overhead surfaces, and safe biodegradable chemistry. The couplant helps aviation technicians obtain accurate flaw detection signals during ultrasonic testing of airframes, welded joints, and composite structures.

Key Technical Specs for SOUNDSAFE Ultrasonic Couplant

• Type: Ultrasonic couplant gel for NDT inspection
• Size/Volume: 355 ml dispenser bottle (12 per pack), 5 L cubitainer, 208 L drum options
• Color: Transparent / Clear gel
• Viscosity/Consistency: ~80,000 cps (Brookfield Helipath Spindle E @ 1.5 rpm)
• Cure/Working Time: Designed for slow drying and continuous transducer lubrication during inspection
• Service Temperature: 0°F to 200°F (-18°C to 93°C)
• Typical Uses: Ultrasonic flaw detection, structural inspection, composite material testing, weld integrity scanning

Approvals & Specifications

• Environmentally benign formulation suitable for sensitive operational areas
• Low halogen content (chlorides < 50 ppm)
• Low sulphur content (< 50 ppm)
• Cosmetic-grade ingredient system to reduce skin irritation risk
• Contains ferrous corrosion inhibitor system with effectiveness rating of 75

Typical Aircraft MRO / AOG Applications

• Airframe structural ultrasonic flaw detection
• Weld joint integrity inspection
• Composite panel and laminate evaluation
• Landing gear component scanning
• Critical load-bearing structure testing
• Field AOG ultrasonic inspection during unscheduled maintenance

Compatibility & Safety Notes

• Compatible with most metals and composite materials used in aviation structures
• Non-flammable, non-irritating, and orally non-toxic formulation
• Free from heavy metals, glycol ethers, nitrites, silicones, dyes, and harsh surfactants
• Water-soluble and easily removed after inspection
• Suitable personal handling without special hazardous material classification

Packaging & Procurement

• 12 × 355 ml dispenser bottles for field inspection kits
• 5-litre cubitainer packs for workshop MRO stations
• 2 × 5-litre or 4 × 5-litre bulk pack configurations
• 208-litre drum supply for high-volume maintenance facilities
• Store in cool, dry conditions away from direct sunlight

Why SOUNDSAFE Ultrasonic Couplant is Chosen for AOG / MRO

• Improves inspection accuracy through optimal acoustic impedance transmission
• Reduces surface noise and signal scattering during ultrasonic testing
• Slow-drying gel supports extended field inspections without frequent reapplication
• Portable packaging supports rapid AOG response deployment
• Reliable performance across wide environmental temperature ranges

Practical Suggestions for Your Team (AOG Mindset)

• Maintain emergency stock of small dispenser bottles for AOG readiness
• Train inspection personnel on proper transducer wetting technique
• Ensure couplant container sealing after use to prevent contamination
• Implement inventory rotation for field inspection kits
• Use water rinse cleaning protocols after ultrasonic testing

Manufacture / Aviation Spec Codes

• Manufacturer: Ultrasound Enterprises Ltd
• Product ID: N/A – refer to distributor or internal procurement code
• MIL / OEM / Export Codes: Not formally assigned; suitable for general NDT aviation inspection use

Alternative Names & Descriptions

• Ultrasonic couplant gel
• NDT inspection couplant
• Soundsafe acoustic transmission gel
• Environmentally benign ultrasonic couplant
• Aviation ultrasonic testing couplant
