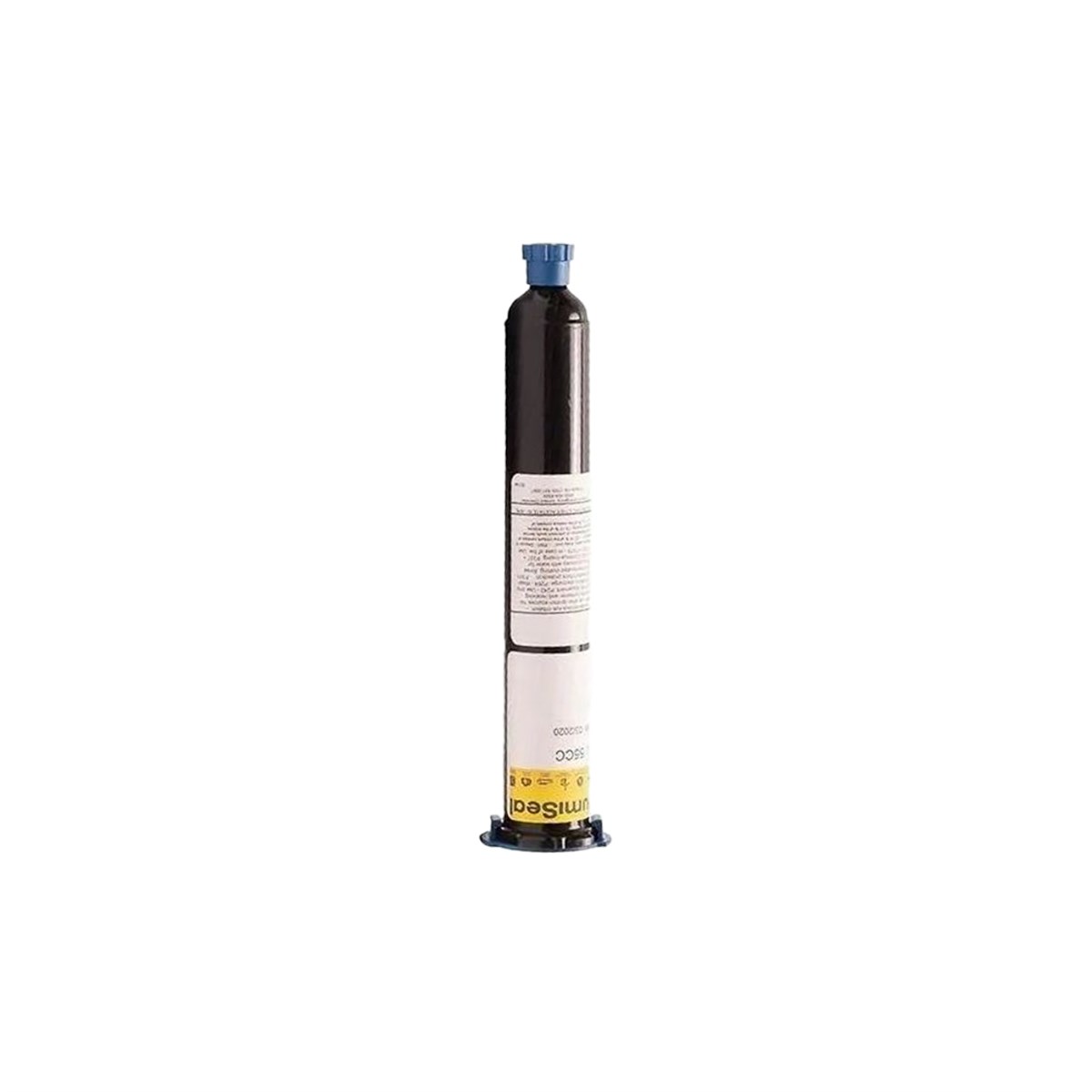

HUMISEAL HumiSeal UV92 (55-CC-SYRINGE)
UV CURABLE MASKING MATERIAL (55-CC-SYRINGE)
AERO P/N: 117565
Hazardous Material
HumiSeal® UV92 is a UV-curable temporary masking material designed to protect electrical contacts and keep-out areas during conformal coating processes. It provides fast curing, solvent resistance, clean peel removal, and reliable protection for aerospace and electronic assemblies.
Product Features
OEM
-
OEM Part No.
-
Colour
-
Shelf Life in Months
12
Shelf Life in Days
360
UN No
Non-Haz
Class
-
PG
-
ECCN
EAR99
Country of Origin
United States
Commodity Code
32082090
Product Type
Paints
Please login to access datasheets.
Information
HumiSeal® UV92 Masking
Overview
HumiSeal® UV92 is a soft, one-part, UV-curable masking material designed to provide temporary protection of keep-out areas during conformal coating processes. Its shear-thinning viscosity allows easy dispensing and application, while full UV curing creates a reliable barrier preventing unwanted coating ingress. The material offers excellent solvent resistance and can be easily removed by peeling without leaving residue that could affect subsequent operations.
Key Technical Specs
- Product Type: UV-curable temporary masking material
- Chemical Class: Urethane acrylate
- Appearance: Milky white
- Specific Gravity: 1.04 @ 25°C
- Viscosity: Thixotropic paste
- Hardness: 40 Shore A
- Elongation at Break: >200%
- Glass Transition Temperature (Tg): -50°C
- Operating Temperature Range: -50°C to 150°C
- Shelf Life: 12 months (stored at 18 ±10°C)
Key Features & Benefits
- 100% UV cured for fast and reliable masking performance
- Easy application through syringes or automated dispensing systems
- Excellent solvent resistance during coating operations
- Provides clean protection of electrical contact areas
- Does not tarnish gold, tin, copper, phosphor bronze, or Sn/Pb solder surfaces
- Soft and flexible cured material allows easy removal
- Leaves no residue after peeling
- REACH and RoHS compliant
Typical Applications
- Printed circuit board (PCB) masking during conformal coating
- Protection of electrical contacts and connectors
- Temporary masking of keep-out areas
- Aerospace and electronic assembly protection processes
Application Guidelines
- Apply HumiSeal® UV92 to areas where conformal coating is not required
- Maximum recommended application thickness: up to 5 mm
- Cure fully using recommended UV exposure before applying conformal coating
- Remove after coating by gently peeling away from the protected surface
Curing Requirements
- UV-LED curing: 365 nm or 405 nm wavelength
- Compatible with H-type microwave or arc lamps
- Minimum UV power: 200 mW/cm²
Compatibility & Safety Notes
- Clean-up solvent: Isopropyl alcohol
- Store in tightly closed containers away from direct sunlight
- Recommended storage temperature: 8°C to 28°C
- Use only in well-ventilated areas
- Avoid contact with skin and eyes
- Refer to Safety Data Sheet before use
Packaging & Procurement
- Available in bulk containers and syringes
- Suitable for manual and automated dispensing applications
Why This Product is Chosen for AOG / MRO
- Provides reliable temporary protection during coating processes
- Fast UV curing reduces production and repair turnaround times
- Clean peel removal minimises rework requirements
- Protects sensitive electrical connection points from contamination
Practical Suggestions for Your Team (AOG Mindset)
- Confirm UV curing equipment output before processing
- Apply only to clean, dry surfaces for optimum adhesion
- Avoid excessive thickness beyond recommended limits
- Remove masking carefully to prevent damage to delicate components
Manufacturer / Product Codes
- Product Name: HumiSeal® UV92 Masking
- Product Type: UV-curable temporary masking compound
- Application: PCB and electronic coating protection
- Manufacturer: HumiSeal® / Chase Corporation
Restrictions
Restrictions
Restricted
Hazardous
Yes
Dry Ice
No
Precursor Licence
Export Licence
FEDEX Restriction
Supplier Disruption
no
